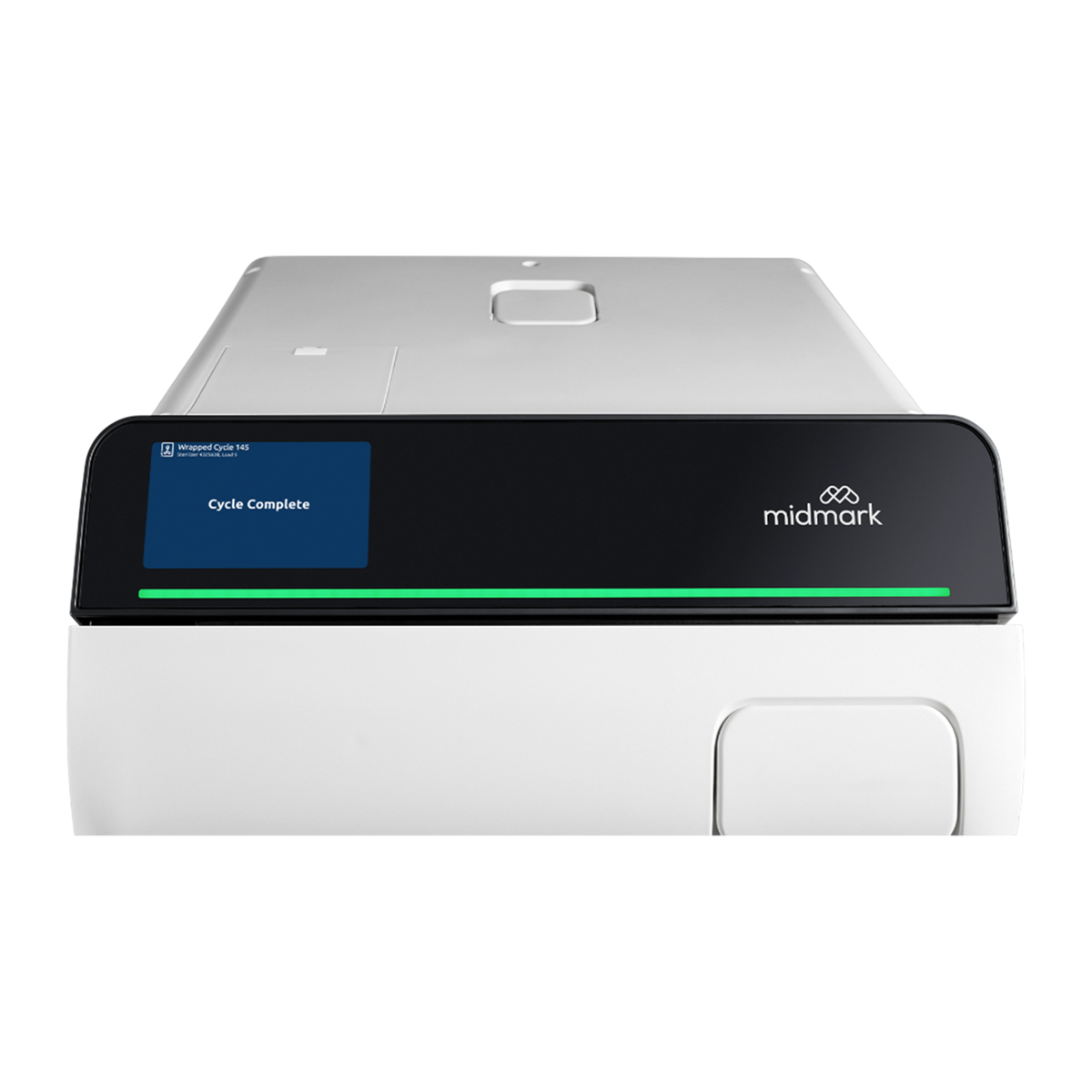

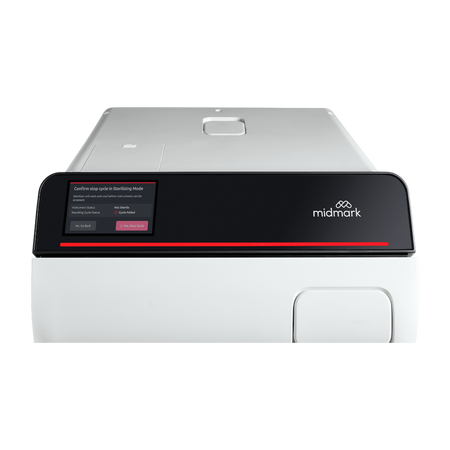

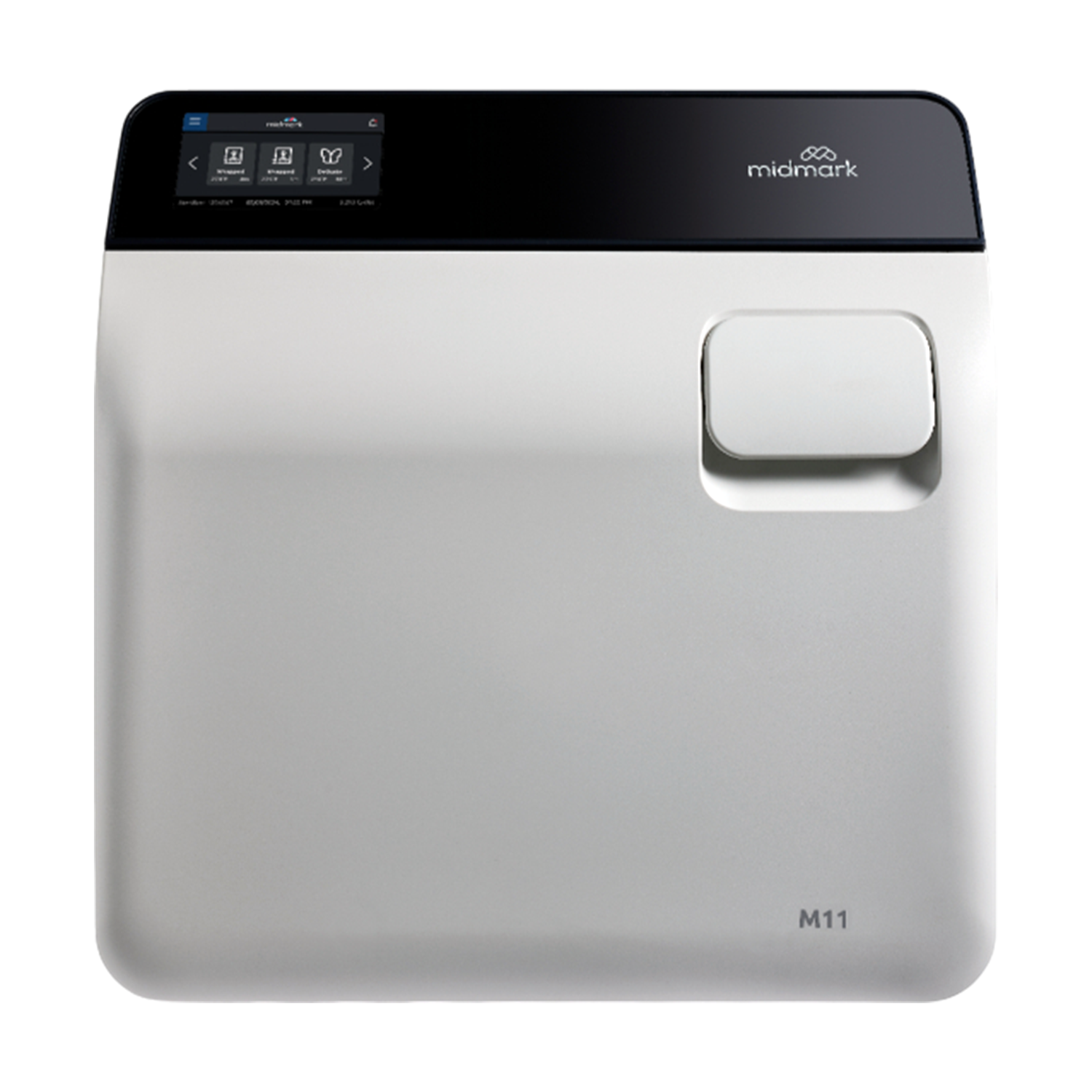

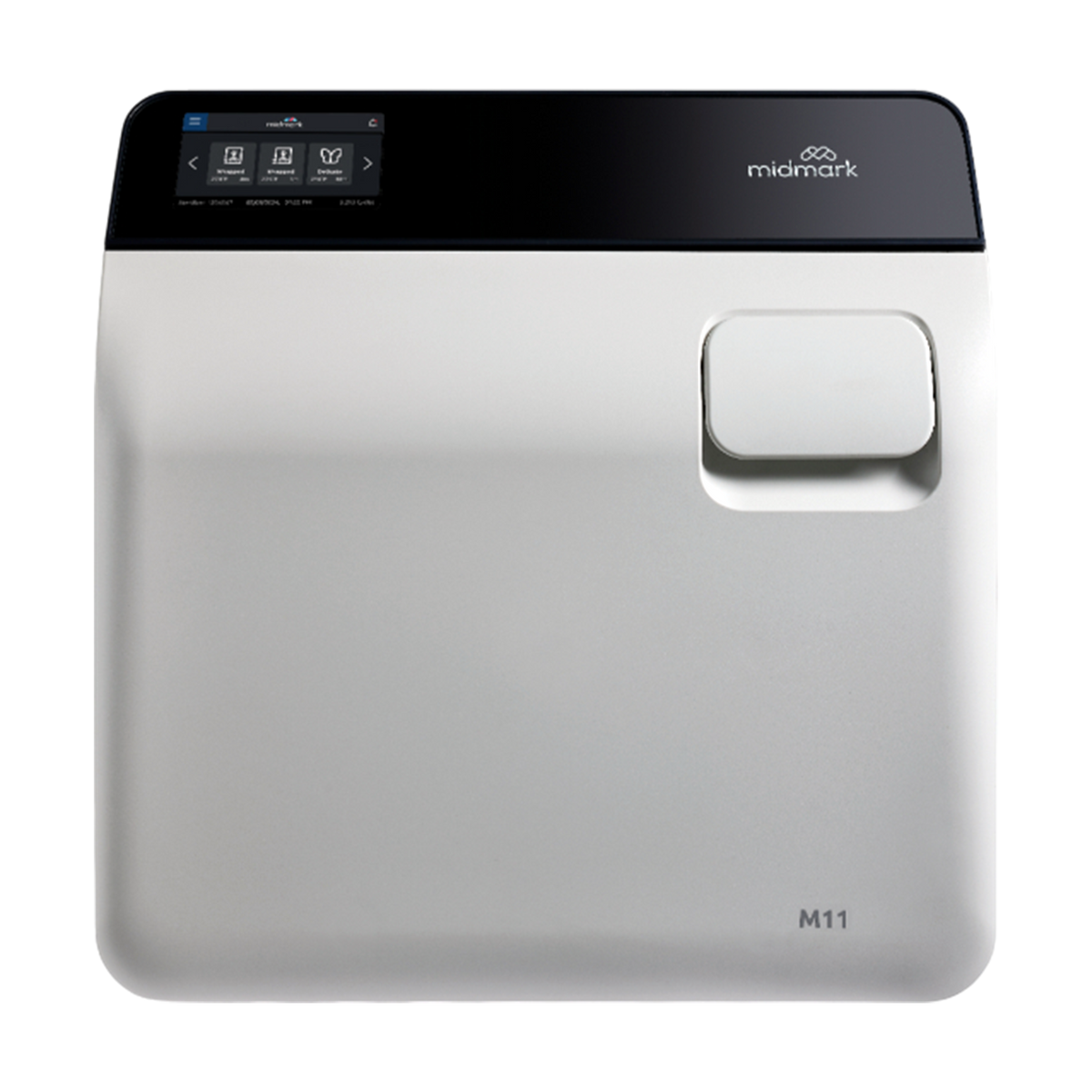

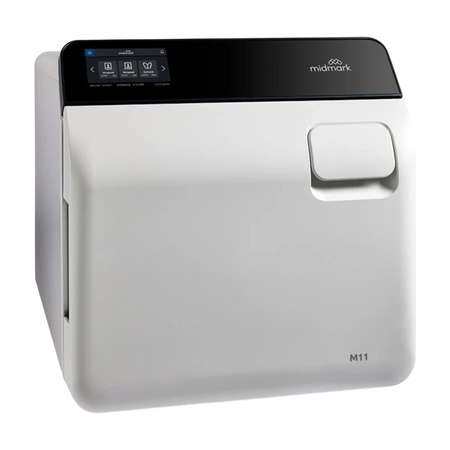

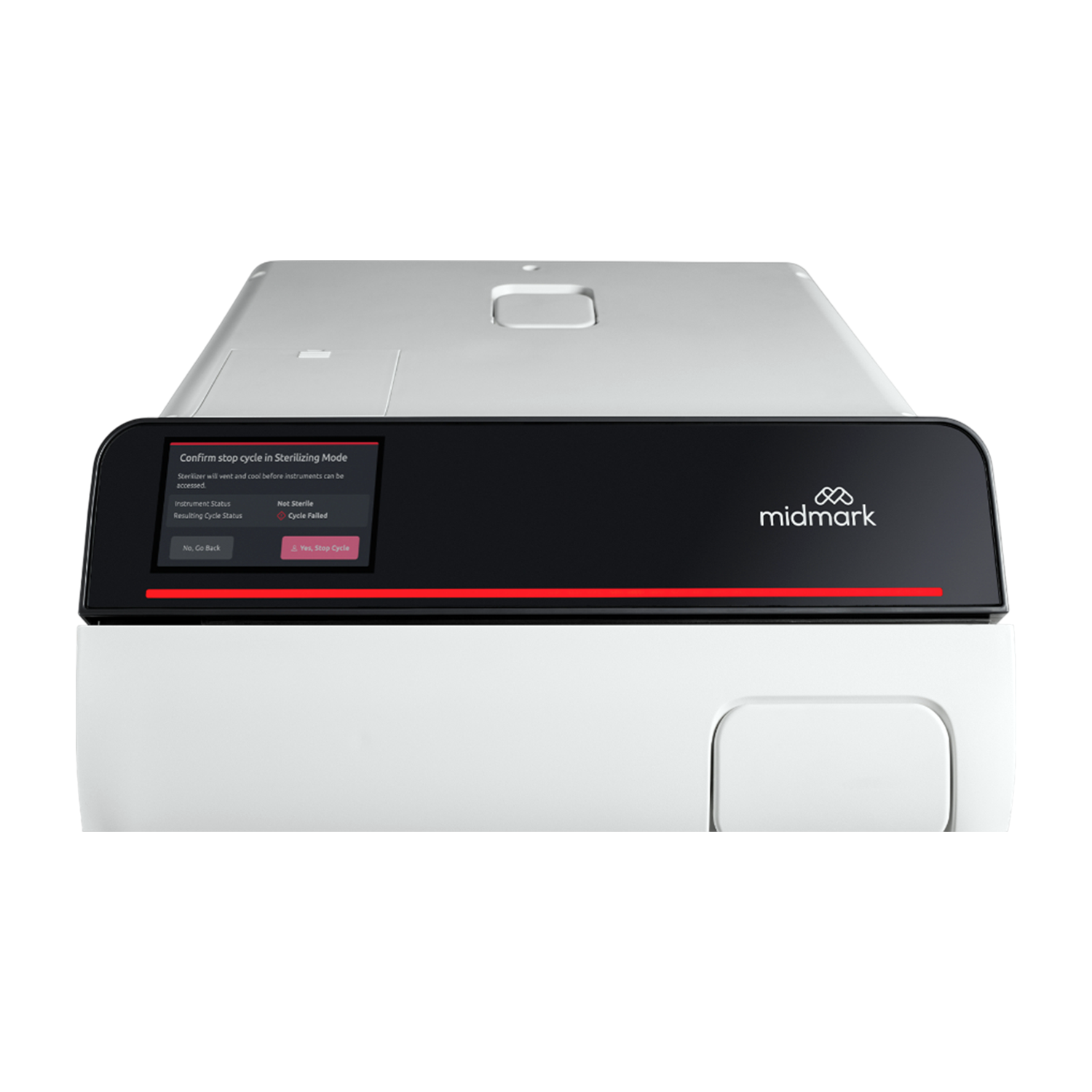

Midmark Ritter M11-050 Tabletop Automatic Steam Sterilizer w/ Automatic Door

SKU: EN-MIDMARK-M11-050
(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

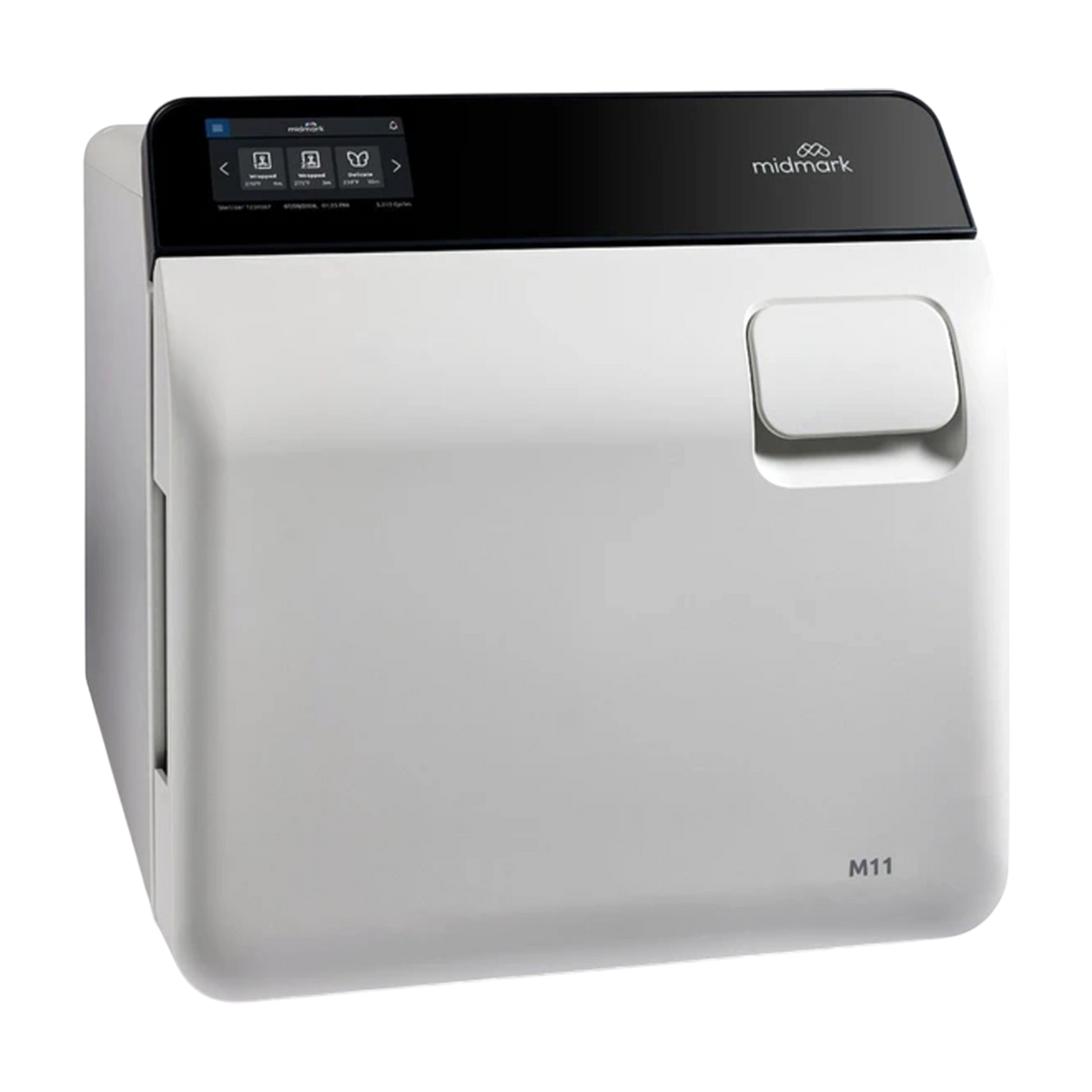

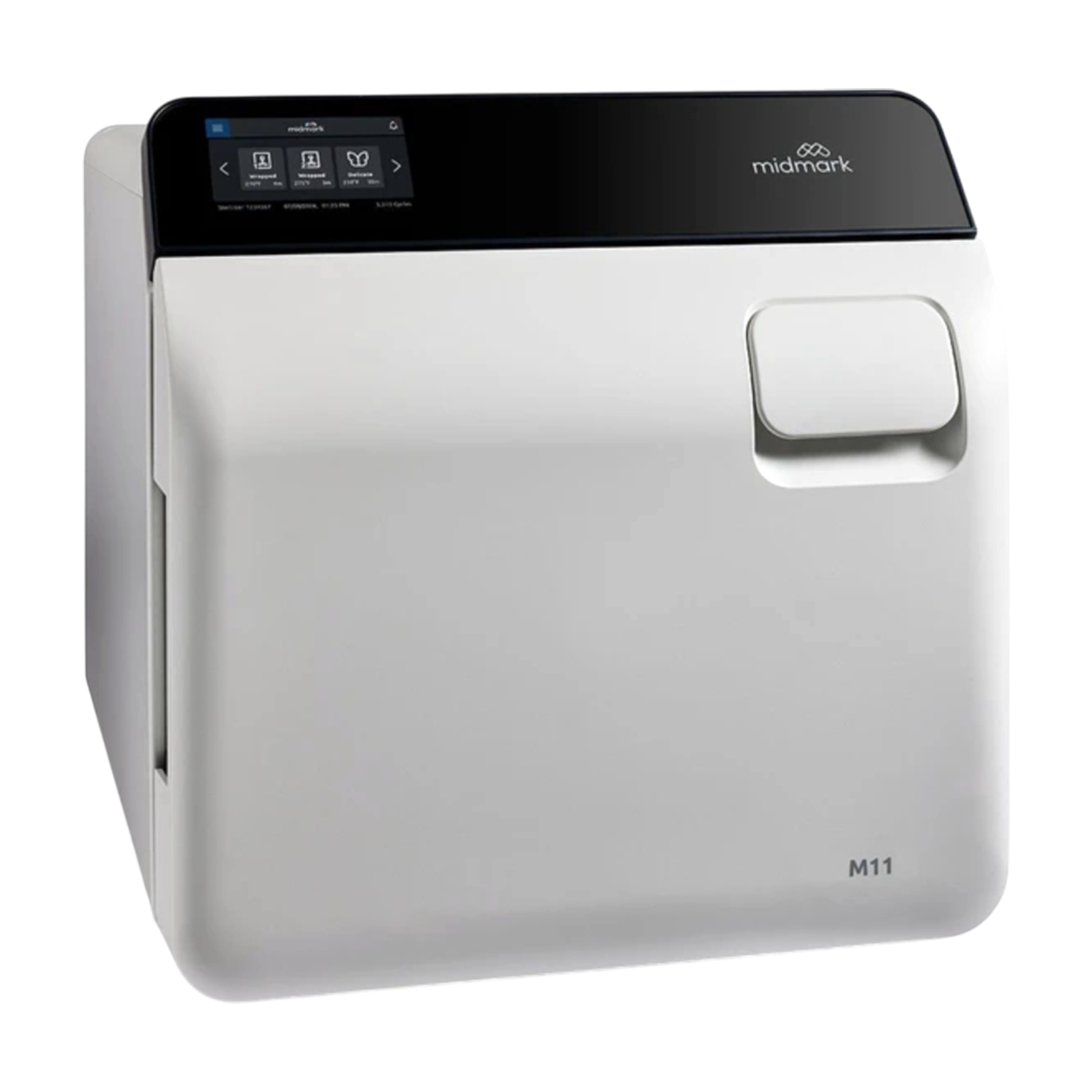

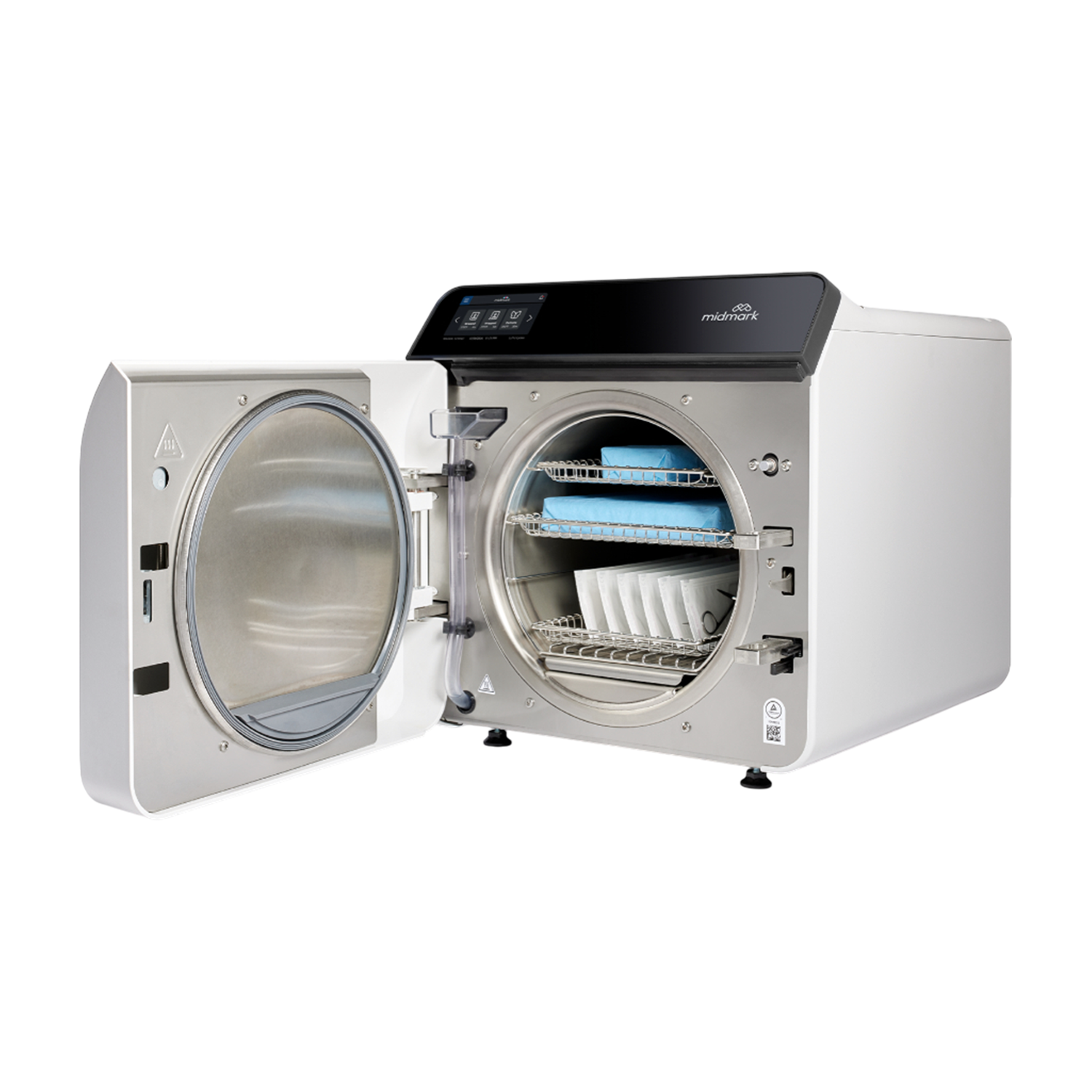

The Midmark M11-050 3rd Generation is a tabletop steam autoclave sterilizer designed for efficient instrument sterilization in medical and dental settings, featuring a large chamber and automated cycles for wrapped and unwrapped loads.

FEATURES:

  • Device life of 25,000 cycles
  • Pre-programmed cycles for unwrapped, wrapped, pouches, and heavy instruments.
  • Programmable custom cycles with adjustable time, temperature, and vent settings.
  • LCD display with intuitive prompts and low-water alerts.
  • Automatic door opening for enhanced drying.
  • Steam-Flush Pressure Pulse system for air removal.

    SPECIFICATIONS:

    • Manufacturer: Midmark
    • Part Number (OEM): M11-050
    • Category: Automatic Tabletop Steam Sterilizer
    • Condition: New
    • Weight: 99lb (44.9 kg) unit; 131lb (59.4 kg) shipping
    • Warranty: 1 Year Parts/Labor, 2 Parts
    • PHYSICAL DIMENSIONS:
      • Overall Length with Plug: 23.5 in (59.7 cm)
      • Overall Width: 17.8 in (45.2 cm)
      • Overall Height: 18.6 in (47.2 cm)
      • Support Surface Requirements: 21.8 in x 26.5 in (55.4 cm x 67.3 cm)

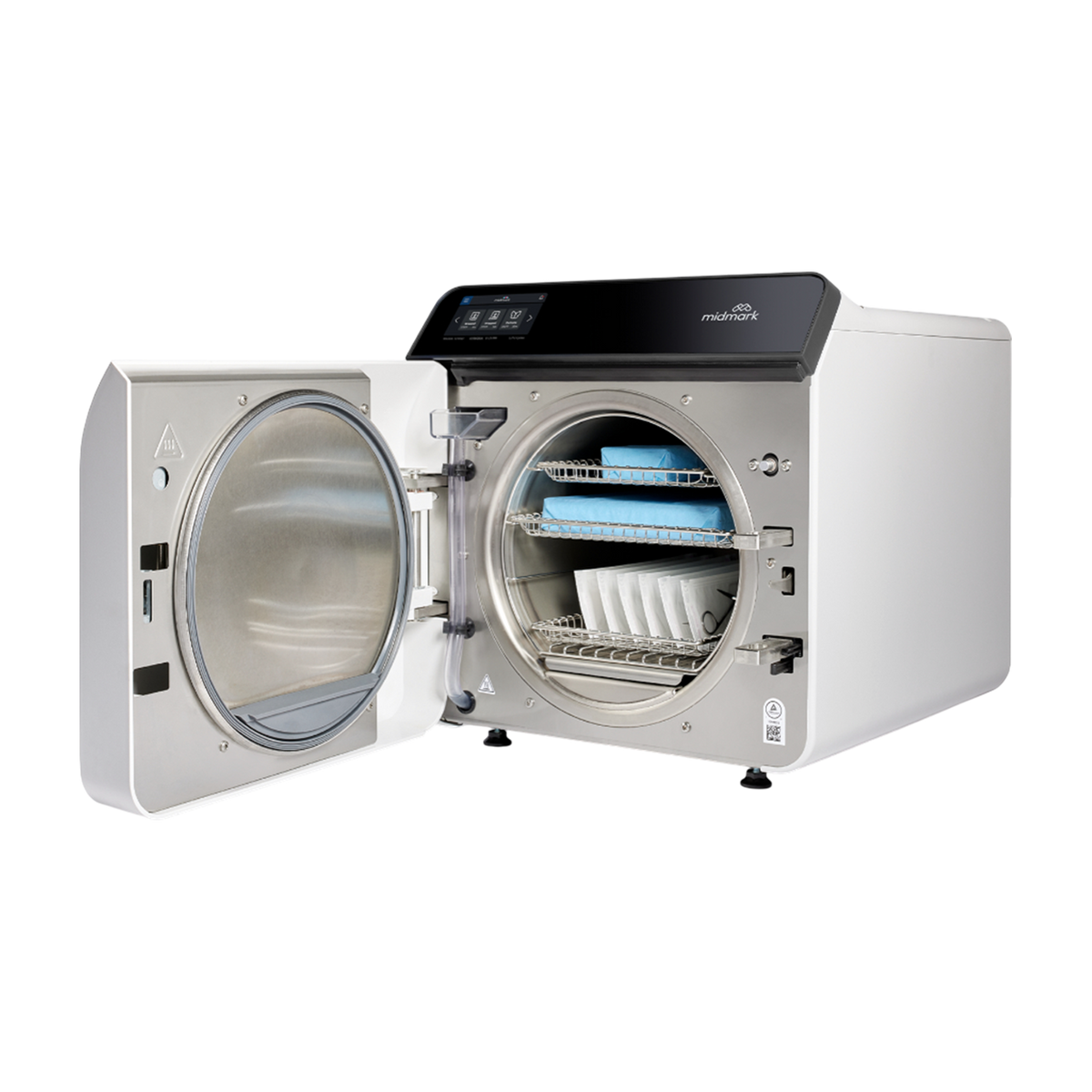

      • Chamber Size: 11 in (diameter) x 18 in (depth) (27.9 cm x 45.7 cm)
      • Standard Tray, Large (Usable): 9.1 in x 15.3 in x 0.9 in (23 cm x 38.7 cm x 2.2 cm)
      • Standard Tray, Small (Usable): 6.8 in x 15.3 in x 0.9 in (17 cm x 38.7 cm x 2.2 cm)
      • Pouch Rack: 6-slot
    • WEIGHTS:
      • Unit (Empty Reservoir): 99 lb (44.9 kg)
      • Shipping: 131 lb (59.4 kg)
    • ELECTRICAL:
      • 115 VAC: 12 Amp, 50/60 Hz (103-127 VAC range)
      • 230 VAC: 6.4 Amp, 50/60 Hz (207-253 VAC range)
      • Fuses (115V): F1/F2 15A fast-acting 0.250x1.250 in; F3 2.5A slow-blow 0.205x0.787 in
      • Fuses (230V): F1/F2 8A fast-acting 0.205x0.787 in; F3 2.5A slow-blow 0.250x1.250 in
    • CAPACITY:
      • Water Reservoir: 1.4 gal (5.3 L) full; 0.8 gal (3 L) usable
      • Max Load (Wrapped 270°F): 9.0 lb (4,082 g)
      • Max Load (Delicate): 9.0 lb or 2 packs at 1.3 lb textile
    • STANDARD CYCLE PARAMETERS:
      • Wrapped 270°F (132°C): 4 min at 27.1 psi (186 kPa), 30 min dry, max 9 lb
      • Wrapped 275°F (135°C): 3 min at 31 psi (214 kPa), 30 min dry, max 9 lb
      • Delicate 250°F (121°C): 30 min at 15 psi (104 kPa), 30 min dry, max 9 lb textile packs
      • Unwrapped 270°F (132°C): 3 min at 27.1 psi, 30 min dry, max 9 lb
      • 5 Custom Cycles: 250-275°F, 3-45 min, 15-31 psi, 0-60 min dry
    • OTHER:
      • Safety Valve: 43 psi (296 kPa)
      • Heat Emission: 5275 kJ (5000 BTU)/hr
      • Device Life: 25,000 cycles
      • Pollution Degree: II; Overvoltage Category: II

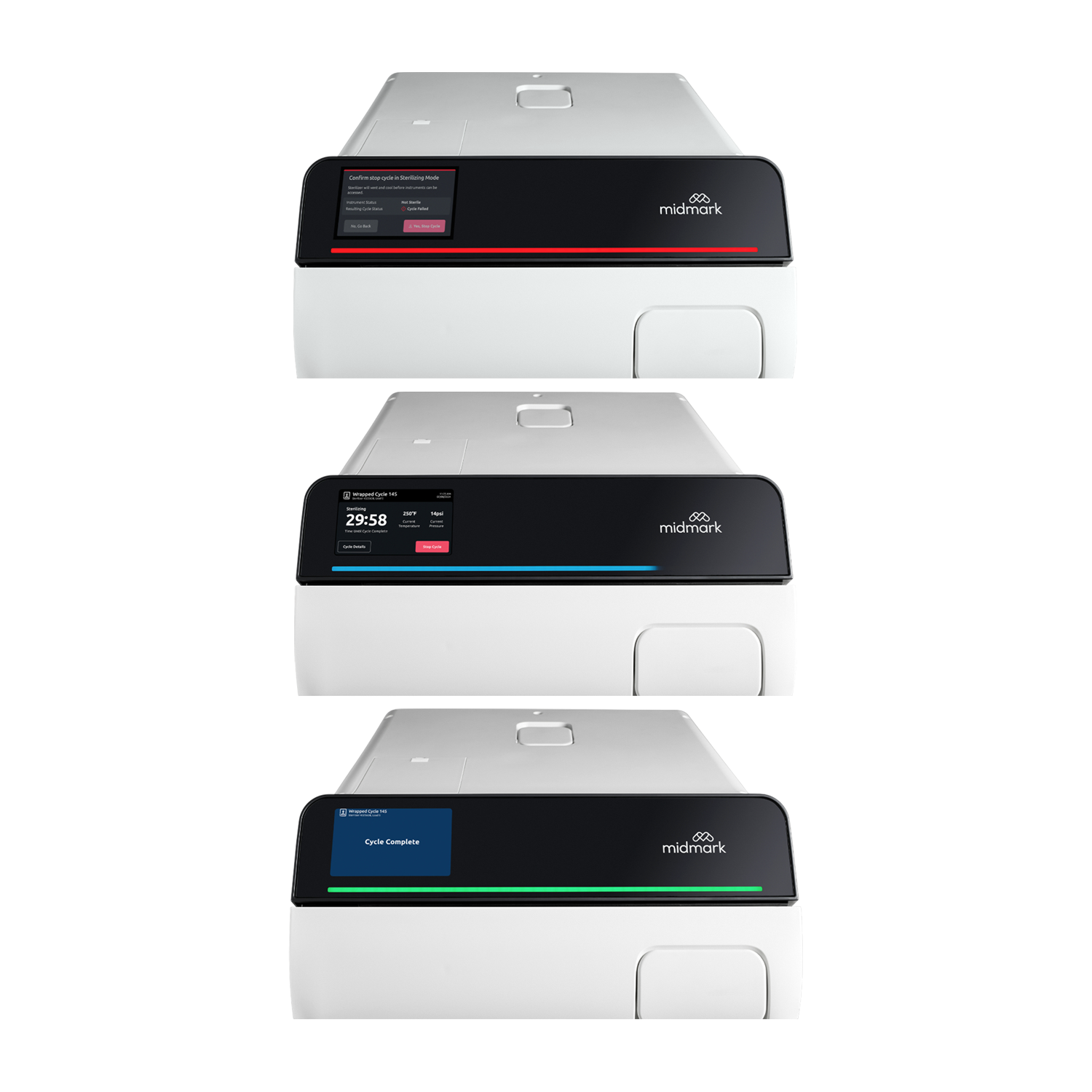

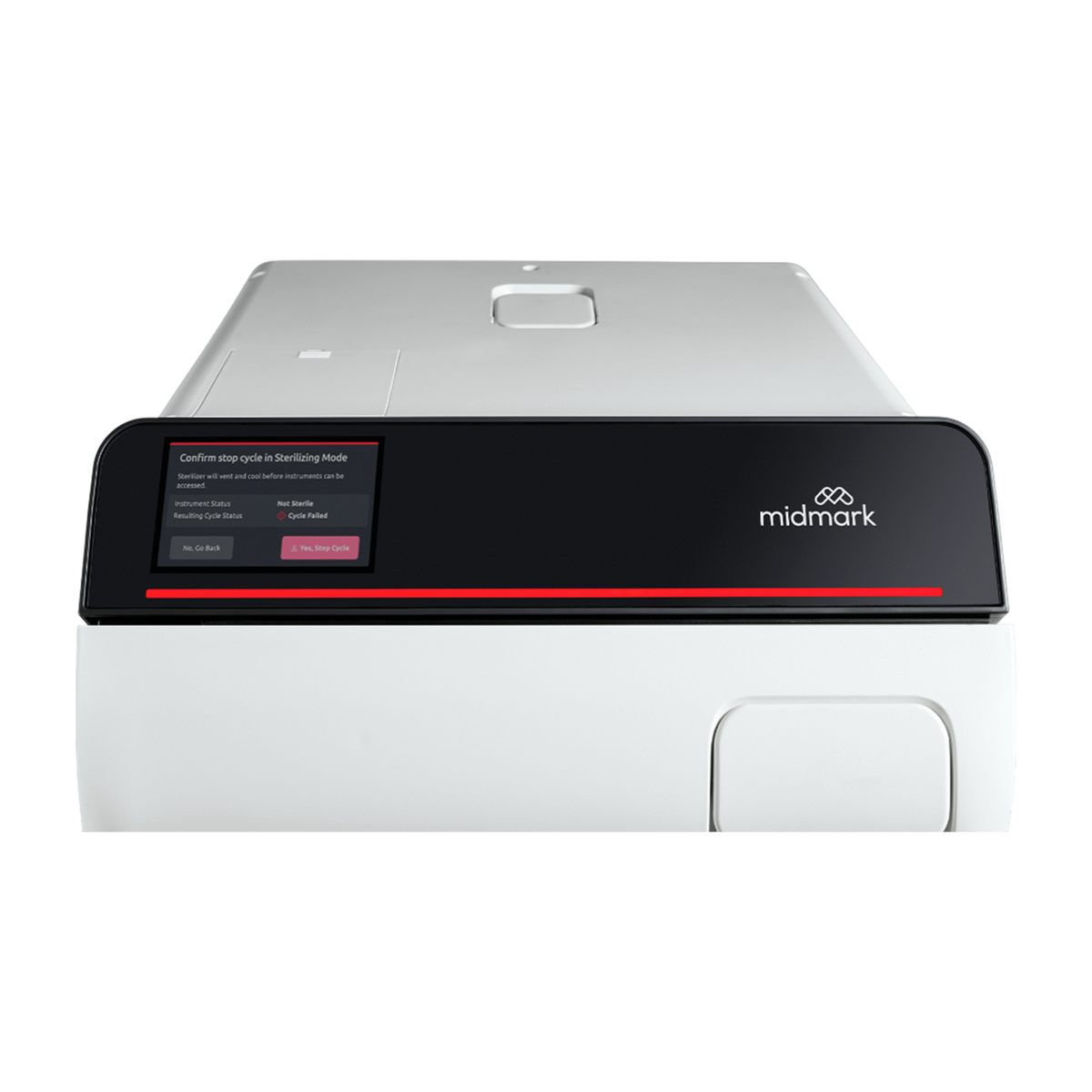

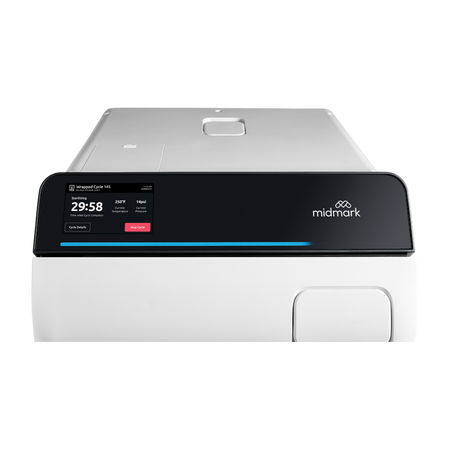

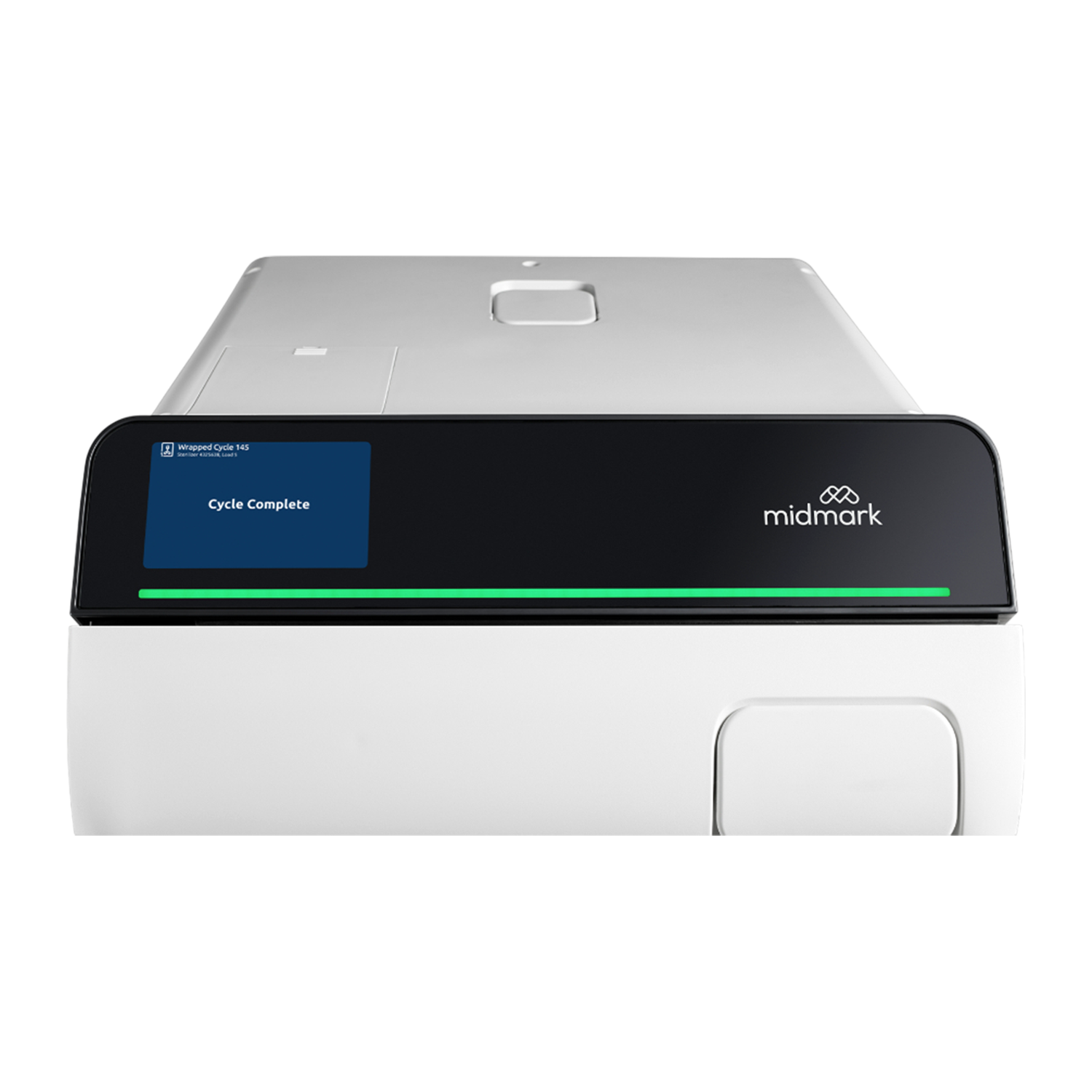

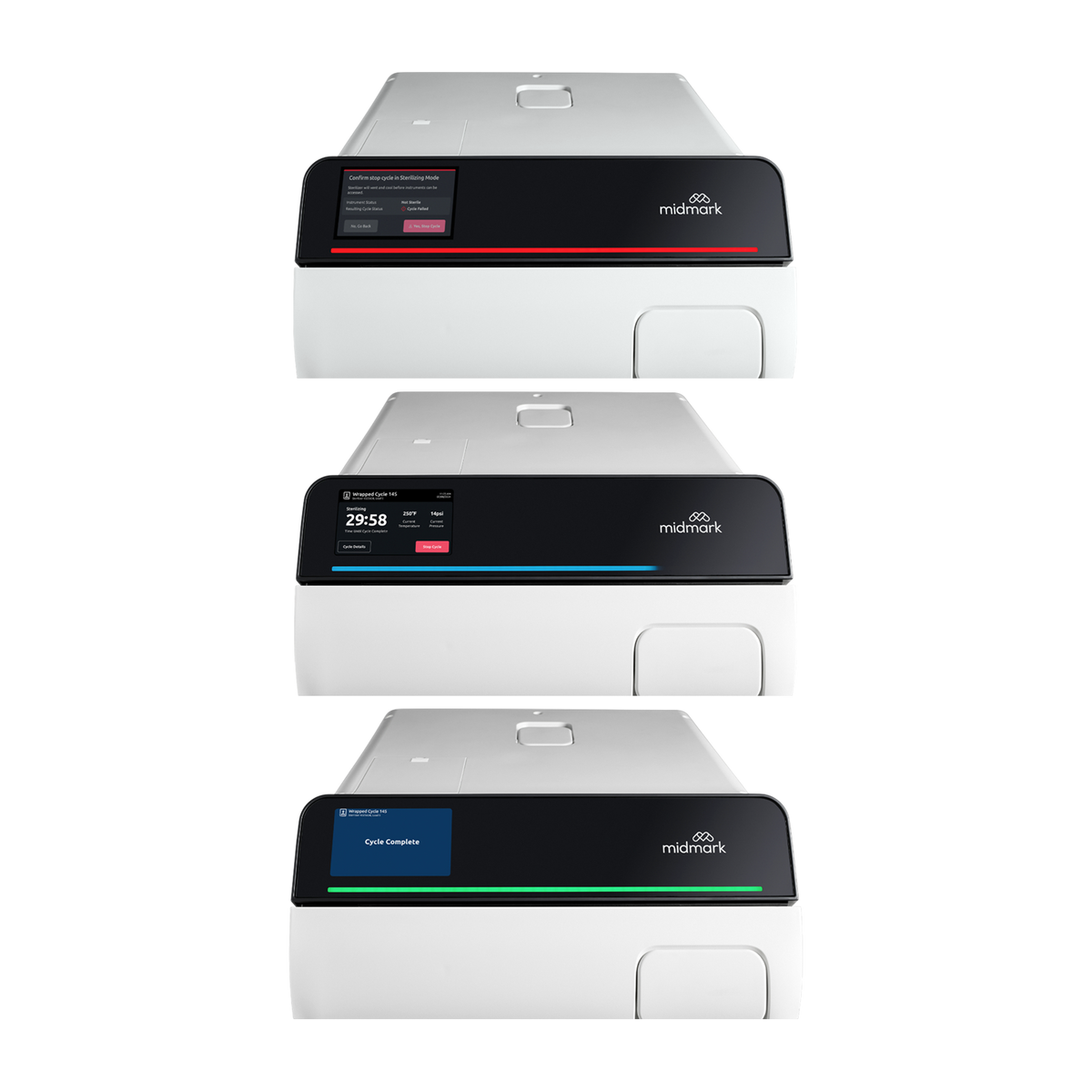

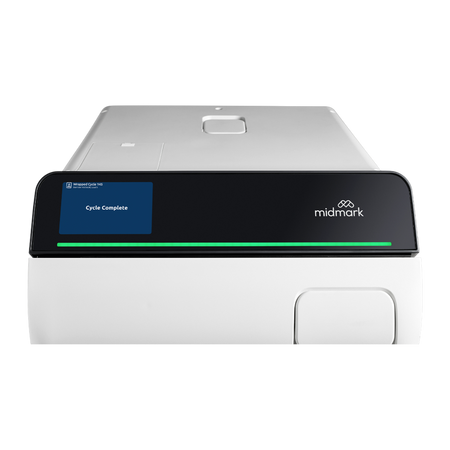

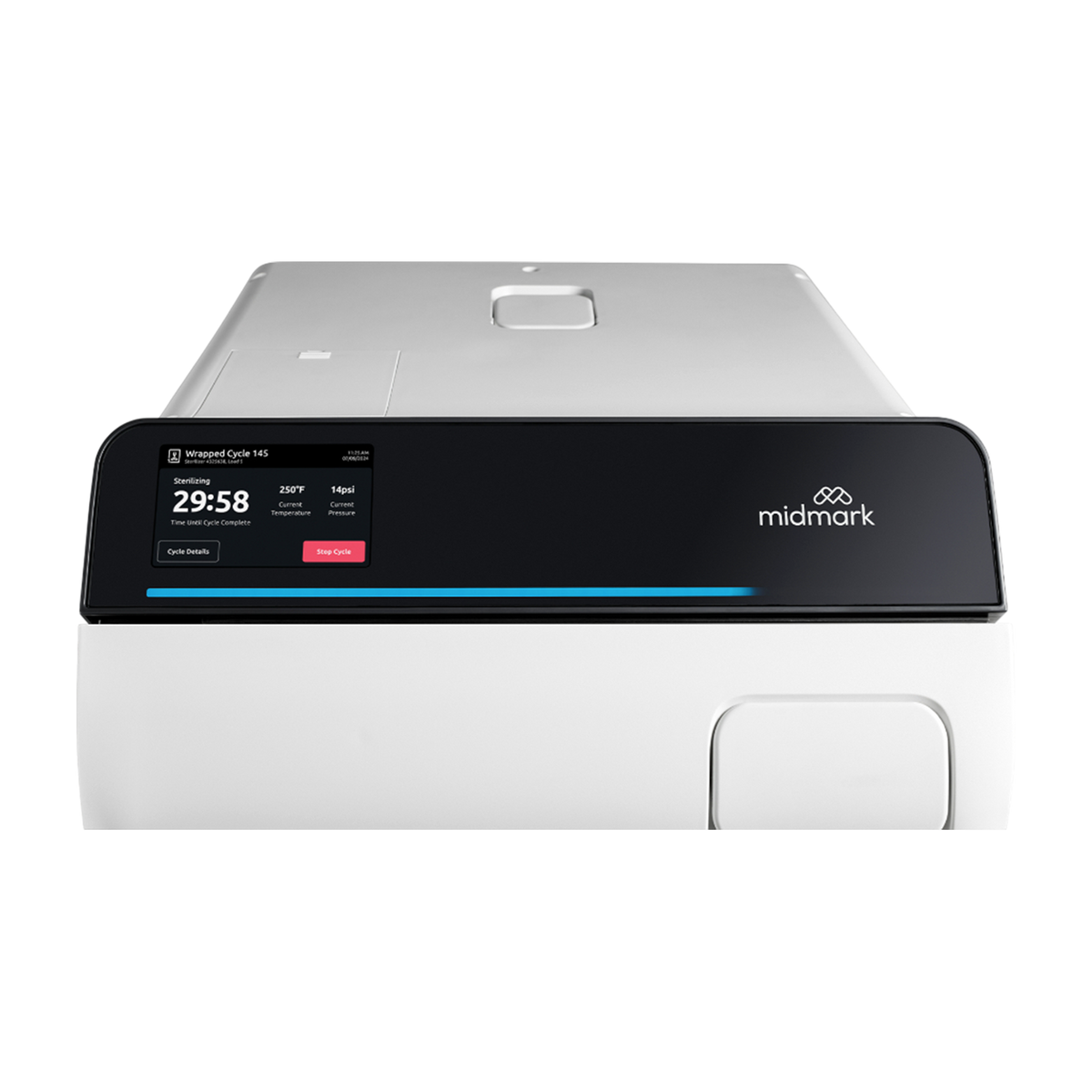

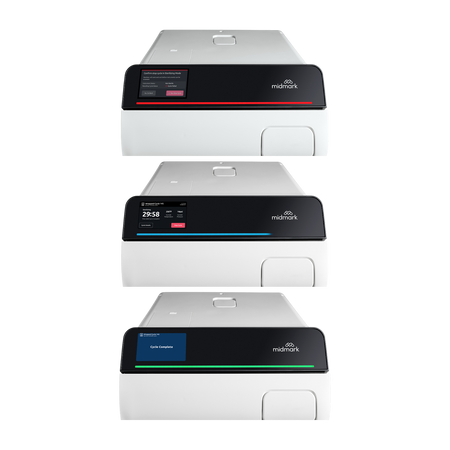

      • User Interface: 5-inch touchscreen, LED light bar, unlimited cycle storage

    COMPATIBILITY:

    • Standard medical/dental instruments, pouches, wrapped trays.
    • Compatible with Midmark M9/M11 accessories and Ritter-series racks.

    ADDITIONAL ACCESSORIES:

    • 9A599001 - Thermal Printer
    • 9A307001 - Tray/Cassette Hand Tool
    • 9A694001 - Autofill System 115V
    • 9A698001 - USB Kit
    • 9A703001 - Vertical Cassette Rack
    • 9A215001 - Horizontal Cassette Rack
    • 9A586001 - Vistacool Unit
